Single Column Lift and Tip

£0.00

• The machine is designed to lift and tip standard 200 litre euro tote bins.
• It can be manufactured as a mobile version on braked casters or as a static unit which can be bolted to the floor.
• Adjustable tipping height with a maximum tipping height of 2200mm and a minimum tipping height of 1100mm.
• Lifting speed 6 metres / minute.
• Other models also available including guarding.
• Maximum lifting capacity of 350kg including bin and product.
• Nominal size with bin 1070mm x 1520mm x 2862mm high.
• 415 volt 3 phase 0.75kw motor.

Description

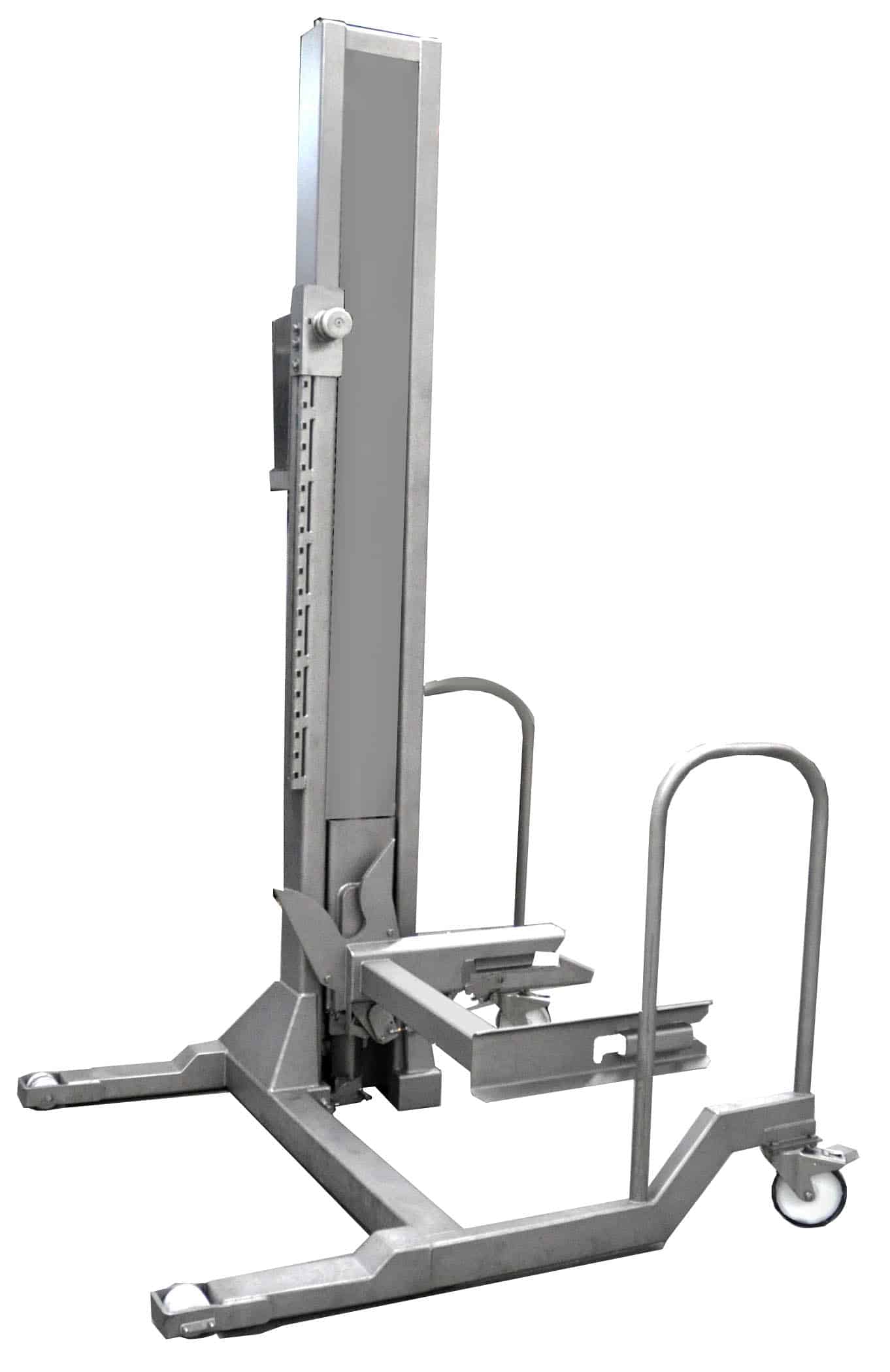

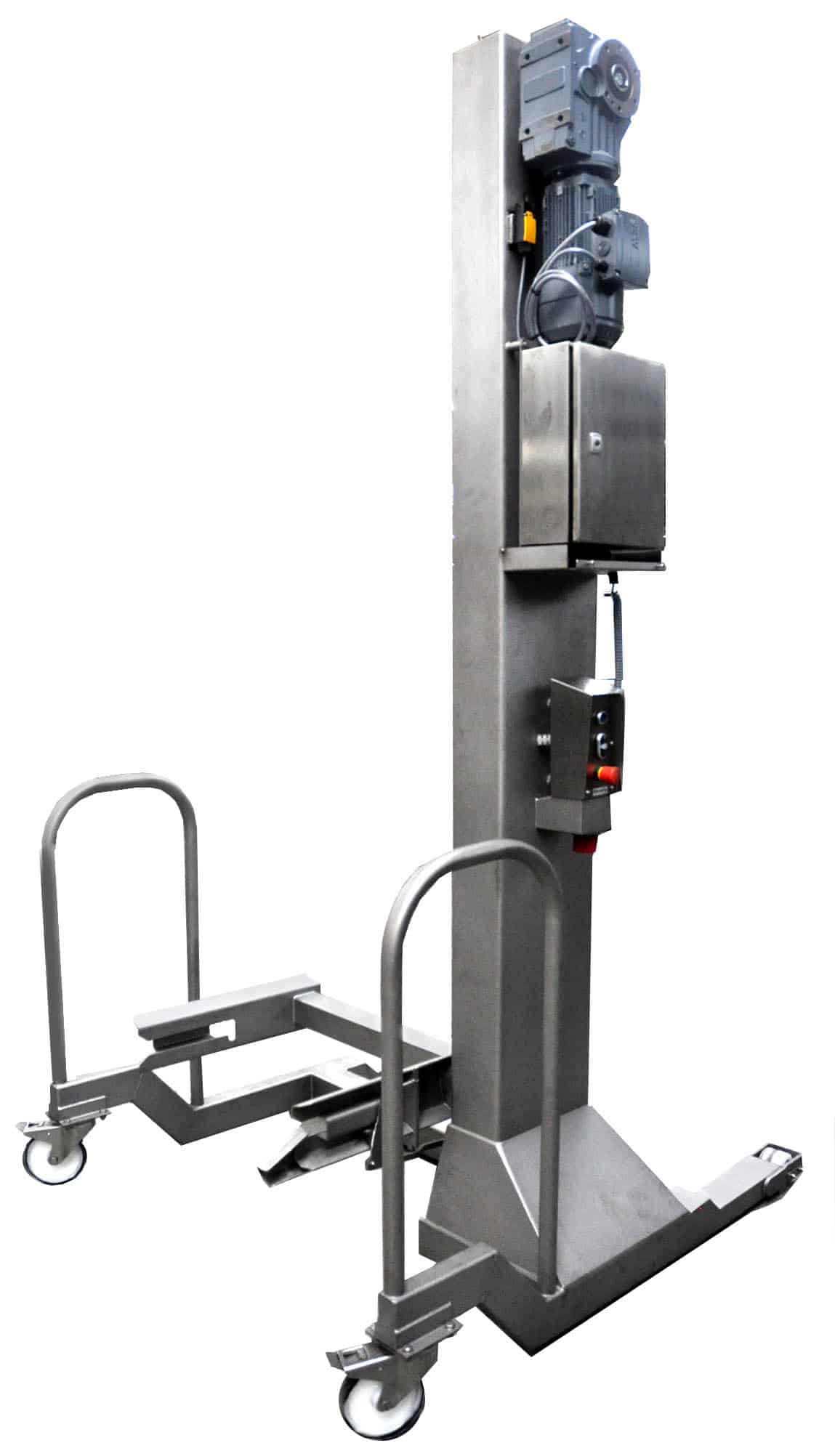

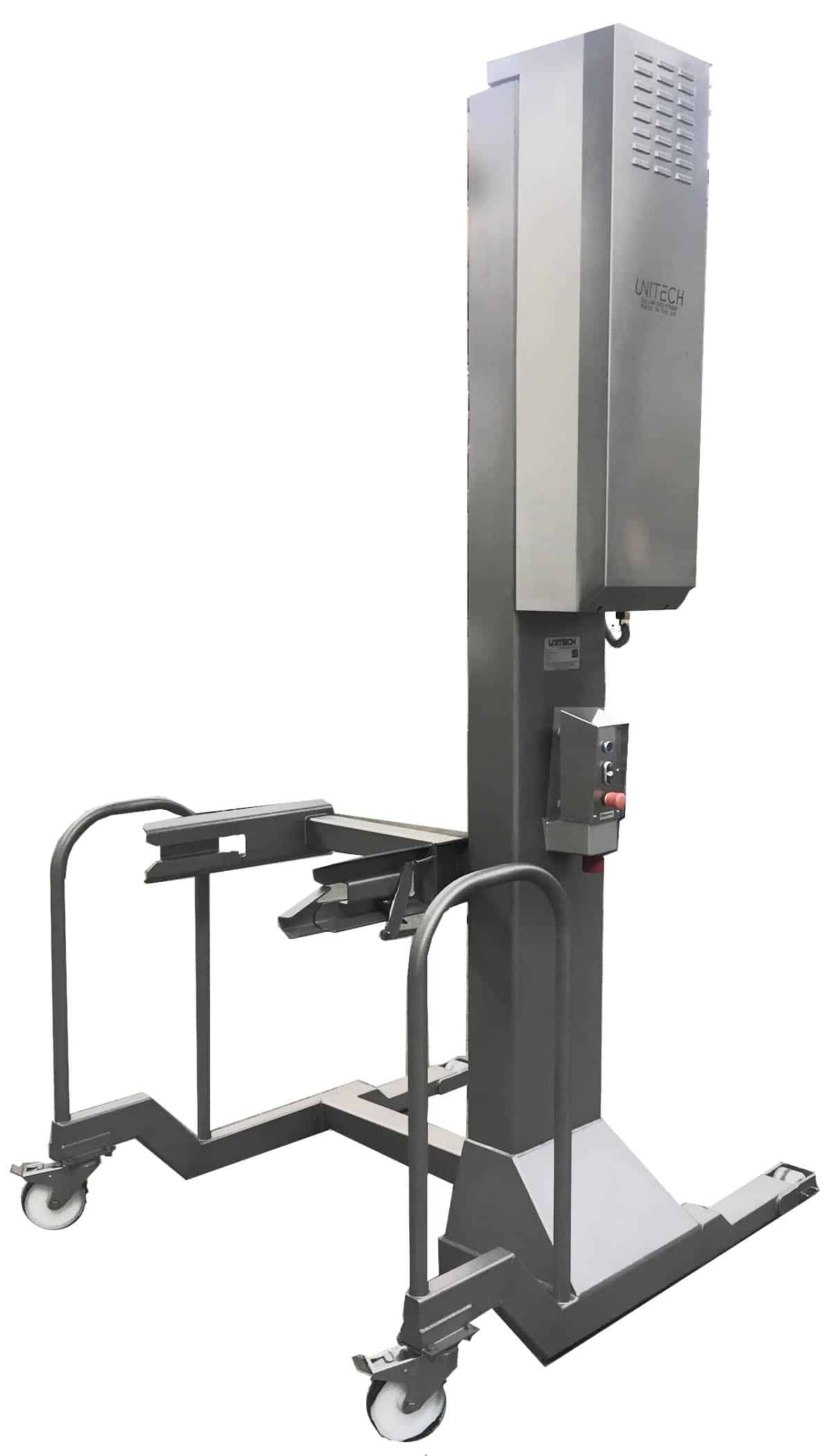

Unitech’s single column lift and tip unit is designed to lift and tip standard 200 litre tote bins. It can be manufactured as a mobile version on braked casters or as a static unit which can be bolted to the floor. Our single column lifts are used widely within the food and beverage production industry complimenting the production process perfectly with the ideal solution for lifting and tipping ingredients and product.

Our single column lift is made from 304 grade stainless steel with a matt finish and with an adjustable tipping height with a maximum tipping height of 2200mm and a minimum tipping height of 1100mm. Our units have a lifting speed of 6 metres per minute and a maximum lifting capacity of 350kg including bin and product.

We offer a number of options on our single column lifts including guarding. We also have other models available including the tote bin tippy, twin column lifts and dolav tippers. Our single column lift and other lifts are currently being used in bakeries, ready meal production facilities, dairies, meat and fish processing plants and pharmaceutical plants to name but a few.
